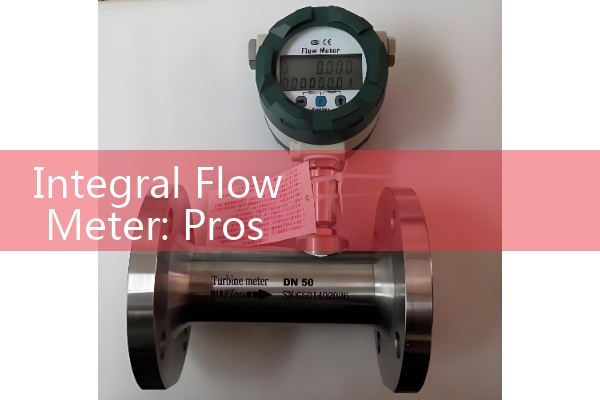

Integral Flow Meter: Pros and Cons of Combining Sensors and Transmitters in Single Enclosures
Quick Answer: An integral flow meter puts the sensor and transmitter in one enclosure. The integral design reduces cable runs, saves space, and simplifies installation. But it is not always the right choice for hot, vibrating, or hard to reach locations.
What Is an Integral Flow Meter
An integral flow meter has the measuring element and the signal converter inside a single housing. There is no separate signal cable between the sensor and the transmitter. Many electromagnetic flow meters, Coriolis mass flow meters, vortex flow meters, and inline ultrasonic meters use this design.
For example, a DN50 electromagnetic flow meter from Silver Automation Instruments can ship as an integral unit. It includes a local display, 4-20 mA HART output, pulse output, and an IP67 aluminum housing. Standard liner choices are PTFE or hard rubber. Electrode choices include 316L, Hastelloy, titanium, and tantalum.
Pros of Combining Sensor and Transmitter in One Enclosure
Lower installed cost. A remote mount flow meter needs a shielded signal cable between sensor and transmitter. That cable can run 20 m, 50 m, or even 200 m. In a water recycling project in Thailand, a contractor installed 12 integral electromagnetic flow meters in one week. The same job with remote versions would have added two extra days of cable tray work.
Fewer cable entry points. Each cable gland and junction box is a possible moisture entry point. This matters a lot in coastal desalination plants in the Middle East. An integral flow meter has only power and signal cable entries. Fewer glands mean fewer corrosion failures.
Compact footprint. Skid builders in Vietnam often have tight pipe racks. An integral Coriolis mass flow meter saves space because there is no separate wall box. This helps food and beverage batching systems where every centimeter matters.
Stronger signal. The sensor signal is processed inside the same enclosure. A long sensor cable can pick up electromagnetic interference from variable frequency drives. An integral flow meter on a chilled water line near a VFD panel in Malaysia avoids this problem.
Faster startup. You mount one unit, wire power and signal, set the flow range, and run. There is no cross wiring between a separate sensor and transmitter.
Cons of Combining Sensor and Transmitter in One Enclosure
Here is the thing, integral mounting is not a universal fit. Heat exposure is one of the biggest limits. The transmitter electronics sit close to the process pipe. On a 180 °C hot oil line, the display and circuit board age faster. Remote mount versions keep the electronics away from the heat source.
Vibration damage. A positive displacement pump discharge line often shakes constantly. Over time, vibration can loosen terminal blocks inside an integral enclosure. A remote version with a wall bracket lasts longer in this service. A paint manufacturer in Southeast Asia replaced integral vortex meters on a filling line with remote versions after vibration caused display failures twice.
Hard to reach. A flow meter installed 4 m above a walkway is difficult to read and service. Remote mount transmitters can be placed at eye level. We have seen this on customer sites many times.
Hazardous area cost. An integral flow meter in ATEX Zone 1 needs the whole enclosure certified and sealed. A remote transmitter can stay in a safe area while only the sensor is rated for the hazardous zone. This setup lowers cost for some oil and gas projects.
Repair work. If the transmitter fails on an integral meter, you often replace the whole head unit or send the complete meter for service. A remote transmitter can be swapped without removing the sensor
When Integral Flow Meters Make Sense
Use an integral flow meter for clean water feed lines, chilled water circuits, small chemical batching systems, and most standard process lines. Typical pipe sizes are DN15 to DN300. Fluid temperature should stay below 120 °C for a standard electromagnetic flow meter. Vibration levels should be low. The meter location should be easy to reach from a platform or the ground.
Silver Automation Instruments supplies integral meters as the default version for many electromagnetic flow meters. A DN50 unit with PTFE liner, 316L electrodes, 4-20 mA HART output, and 120 °C maximum fluid temperature is a common choice for water and wastewater plants.
When Remote Mount Flow Meters Make Sense
Choose a remote mount transmitter for high temperature steam condensate above 150 °C, heavy vibration from reciprocating pumps, direct desert sun exposure, and meter locations inside buried chambers. A wastewater plant in Saudi Arabia selected remote mount electromagnetic flow meters for aeration basins. The sensors sit in direct sunlight. The transmitters are installed in a shaded cabinet 50 m away.
Product Types From Silver Automation Instruments
Silver Automation Instruments supplies several integral flow meter types. Electromagnetic flow meters suit conductive liquids above 5 µS/cm. Sizes run from DN10 to DN2000. Coriolis mass flow meters measure mass flow, density, and temperature directly. A built in PT100 sensor handles temperature compensation. Typical ranges go from 0 to 1000 kg/h for small batching lines up to 500 t/h for larger pipe runs. For high viscosity oils above 100 cP, positive displacement oval gear flow meters are available. Inline ultrasonic flow meters suit chilled water and cooling tower loops. Vortex flow meters handle steam and compressed air.
For seawater desalination plants, specify titanium electrodes on an electromagnetic flow meter. A customer in Oman ordered DN100 integral electromagnetic flow meters with titanium electrodes and IP68 sensors for a seawater intake line. The operating pressure was 16 bar.
FAQ on Integral Flow Meter Selection
What is the difference between integral and remote mount flow meter?
An integral flow meter has sensor and transmitter in one enclosure. A remote mount flow meter separates them with a signal cable. Integral saves space and cable. Remote protects electronics from heat and vibration.
Can an integral flow meter be used for hot water?
Yes if the fluid temperature stays below the electronic limit. For standard electromagnetic meters this is often 120 °C. Above 150 °C use a remote version or add a high temperature riser.
Which industries prefer integral flow meters?
Food and beverage, water and wastewater, HVAC, small chemical batching lines, and skid builders. These industries often have easy access and mild process conditions.
Does an integral flow meter cost less?
Usually yes. You avoid a long signal cable and a junction box. The meter itself costs about the same as a remote version. The total installed cost is lower for small and mid size projects.
What information should I send for a quote?
Send us your flow range, pipe size DN, fluid name, temperature in °C, pressure in bar, and power supply. For conductive liquids also tell us the conductivity in µS/cm. We will reply with a model and price.
Send your pressure in bar, temperature in °C, pipe size DN, and flow range to Silver Automation Instruments. Our engineers can confirm whether an integral or remote mount design fits your process. Tel: +86-25-68650347. Whatsapp: +86-25-52155837. WeChat: +86 15365082610. Visit flow-meter.com.au for the full range of electromagnetic, Coriolis, ultrasonic, vortex, and oval gear flow meters.
