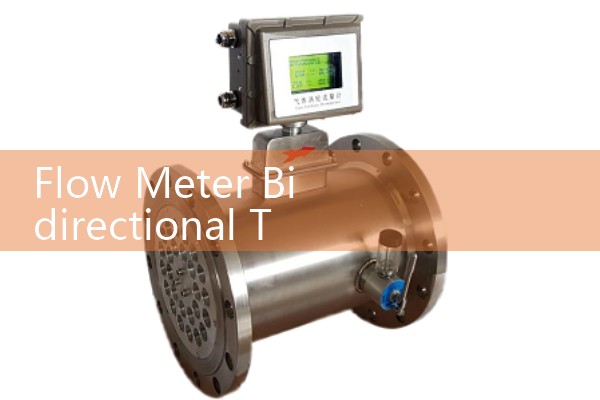

Flow Meter Bidirectional Tracking: Measuring Forward and Reverse Fluid Movement in Pipes
Quick Answer: Bidirectional flow meters measure forward and reverse fluid movement in one instrument. They give separate flow totals for each direction, detect backflow, and remove the need for two single direction devices. For water, wastewater, and most chemical lines from DN25 to DN500, Silver Automation Instruments recommends an electromagnetic flow meter with bidirectional totalizer, 4-20 mA HART, and RS485 Modbus.
Here is the thing. A standard flow meter only counts flow in one direction. When the flow direction changes, the signal can go negative, freeze, or show a false total. In practice, many plants add a second flow meter on the return line or accept bad data. Bidirectional tracking solves the reverse flow problem at instrument level.
Most engineers skip this part. Forward and reverse flow measurement is not just about the sensor. The transmitter also needs two totalizers and a signed output signal. Otherwise the control room sees a negative flow but cannot separate forward volume from reverse volume. We have seen this on customer sites many times.
Where Bidirectional Tracking Is Used
Water treatment plants use forward and reverse flow measurement during filter backwash. The same instrument measures service flow and wash water return without moving parts. In oil and gas depots, loading and unloading lines use one bidirectional flow meter to record product transfer in both directions.
A paint manufacturer in Southeast Asia needed to measure solvent return from a mixing tank. Silver Automation Instruments supplied one Coriolis mass flow meter, DN25, 0 to 500 kg/h, with separate forward and reverse totals. That one meter replaced two older oval gear meters. The plant saved space and reduced calibration work.
Marine ballast water systems also run in two directions. The ballast pump discharges and fills through the same pipe. One electromagnetic or ultrasonic flow meter handles both modes and sends a signed flow signal to the control room.
Technologies That Work for Forward and Reverse Flow
Electromagnetic flow meters. These are the first choice for conductive liquids above 5 µS/cm. The electrode signal changes sign with flow direction. A DN80 magnetic flow meter at 25 °C with 0.5 to 10 m/s range gives 0.2 percent of reading accuracy. Bidirectional totalizers store forward and reverse totals separately. Silver Instruments EMF series covers DN15 to DN2000, and it works well in water, wastewater, acids, and CIP return lines.
Ultrasonic flow meters. Transit time ultrasonic devices measure flow in both directions by comparing upstream and downstream transit times. For a seawater flow meter for desalination plant applications, clamp-on or insertion ultrasonic meters work well on large pipes from DN50 to DN1200. Silver Instruments ULT series includes clamp-on and insertion types. They handle clean fluids, and some models do not require pipe cutting.
Coriolis mass flow meters. Coriolis devices directly measure mass flow and density in both directions. They suit high viscosity and non-conductive fluids such as paint, syrup, and oil. A DN15 Coriolis flow meter can measure 0 to 50 kg/h forward and reverse with 0.1 percent of rate accuracy. Silver Instruments CMP series covers DN15 to DN100. Pay attention to pressure drop at high flow.
Oval gear flow meters. Some positive displacement oval gear meters can run in both di
Key Parameters to Specify
Send the fluid name, conductivity, viscosity, operating pressure in bar, temperature in °C, pipe size in DN, and forward and reverse flow range in m³/h or kg/h. For water lines up to 80 °C and 10 bar, Silver Instruments normally selects a rubber lined electromagnetic flow meter with 4-20 mA HART and RS485 Modbus. For non-conductive oil at 45 °C and 380 cP, a Coriolis or oval gear flow meter is safer.
Output signals matter for bidirectional systems. You need a signed analog output or digital communication. 4-20 mA HART gives flow rate and direction. RS485 Modbus gives forward total, reverse total, and net total. Pulse outputs can be configured for one or both directions. Hazardous area installations often require ATEX Zone 1 or IECEx certification.
Installation Notes
Bidirectional flow meters do not need extra straight pipe compared to single direction models. A DN100 electromagnetic flow meter still needs about 5 straight pipe diameters upstream and 2 downstream. Ground the sensor body properly. Keep the pipe full at all times.
For ultrasonic flow meters, avoid pump discharge with bubbles and suspended solids. Because air and empty pipe cause most startup faults, check these points before wiring. But most installation problems come from air, empty pipe, or poor grounding. So one spare device covers two measurement points without extra flanges or pipe work.
FAQ: Bidirectional Flow Meter Tracking
What is a bidirectional flow meter? A bidirectional flow meter measures fluid flow in both forward and reverse directions. It shows separate totals for each direction and can send a signed output signal to a PLC or DCS.
Which technologies measure forward and reverse flow? Electromagnetic, ultrasonic, and Coriolis flow meters are reliable for bidirectional use. Some oval gear meters can also work in reverse. Vortex and thermal mass flow meters are usually single direction.
Can one device replace two single direction flow meters? Yes. One bidirectional flow meter saves pipe length, flanges, wiring, and calibration effort. It also prevents data mismatch between two devices.
Does bidirectional flow measurement work with sludge or dirty water? Electromagnetic flow meters handle sludge and dirty water above 5 µS/cm well. Ultrasonic meters need cleaner fluid with fewer bubbles. For abrasive sludge, choose a ceramic liner and a robust electrode material.
What output signals do I need for bidirectional tracking? Use 4-20 mA HART for rate and direction plus RS485 Modbus for forward and reverse totals. Pulse output is useful for batching and remote totalizing.
Get a Specific Quote
Send us your pressure (bar), temperature (°C), pipe size (DN), and flow range. We will recommend a bidirectional flow meter with the correct liner, electrodes, output signals, and certification. One customer in Vietnam sent us 4 bar, 28 °C, DN100, 0 to 80 m³/h. Silver Automation Instruments quoted a magnetic flow meter with two batch totals, RS485 and 4-20 mA HART within one working day.
