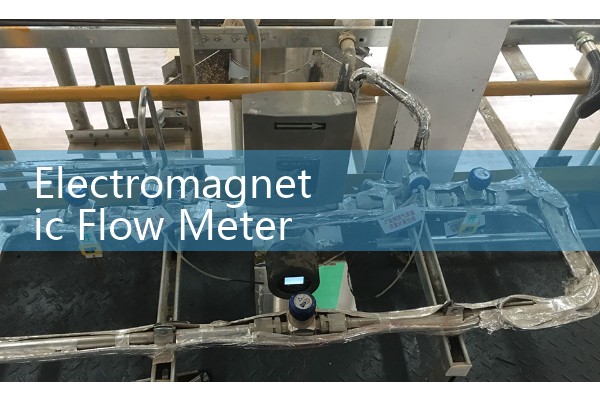

Electromagnetic Flow Meter Installation Mistakes: 5 Things You Must Avoid
Quick Answer: Most electromagnetic flow meter accuracy and reliability problems come from installation, not from the meter itself. Avoid short straight pipe runs, poor grounding, partly full pipes, wrong liner or electrode selection, and noisy signal cable routing. Check these five points before you replace or recalibrate any mag meter.
Silver Automation Instruments supplies electromagnetic flow meters to industrial users in water treatment, wastewater, chemical, food and beverage, oil and gas, and marine sectors. We support customers in Southeast Asia, Oceania, Latin America, Africa, and the Middle East. In practice, we see the same installation mistakes repeat on customer sites. A new mag meter drifts, reads negative, or jumps. But the meter is usually fine. The pipe and the wiring are the problem.
1. Short straight pipe run
Electromagnetic flow meters need a stable flow profile before the electrodes. If you install a DN100 meter after a 90 degree elbow with only 2D upstream straight run, the velocity profile is uneven. The reading can be 2 to 5 percent off. That is enough to ruin batch dosing at a paint factory in Thailand.
What to do: Follow the installation manual. Silver Instruments electromagnetic flow meters normally require at least 5D upstream and 2D downstream for clean liquids. If you have a pump, control valve, or partly open valve upstream, use 10D upstream or install a flow straightener. A dairy plant in Indonesia corrected a 4 percent error by moving a DN80 meter from 1.5D to 8D upstream.
2. Bad grounding or earthing
Mag meters measure microvolt level signals. Poor grounding lets common mode noise enter the measurement. Bare metal pipes often work fine with a ground strap to the meter body. Lined pipes, painted flanges, and plastic pipes need ground rings or grounding electrodes.
Here is the thing. One loose ground strap can make a good meter read 40 percent high. A wastewater station in the Philippines had unstable readings because the contractor connected the ground wire to a painted flange. The paint acted as an insulator. We told the plant to connect the ground wire to the bare pipe or the meter body ground lug. The reading stabilized the same day. So check the grounding first before changing the transmitter.
3. Partly full pipe or air pockets
A mag meter cannot measure a partly full pipe accurately. If the liquid only covers 60 percent of the sensor cross section, the electrodes may lose contact with the liquid. The transmitter may show zero, jump around, or trigger an empty pipe alarm. Install the meter where the pipe stays full at all times.
For horizontal lines, keep the electrode plane horizontal. That places the electrodes on the sides, away from the air pocket at the top and away from sediment at the bottom. For vertical lines, use upward flow. A desalination plant in Saudi Arabia moved a DN150 meter from a downward pipe segment to an upward riser and solved an intermittent reading problem.
4. Wrong liner and electrode material
Installation is not only about position. The liner and electrode materials must match the fluid. A chemical plant in Vietnam installed a meter with a hard rubber liner in hot sodium hydroxide. The liner swelled and failed within two weeks. For hot alkaline or aggressive acid service, use PTFE or PFA liners.
Common electrode choices: 316L stainless st
5. Poor signal cable routing
Because the signal is so small, interference enters easily. Mag meter signal cables carry very small currents. Route them away from VFD motor cables, high voltage lines, and contactor panels. If a signal cable is tied to a 400 V pump cable for 15 meters, the meter may show random flow spikes. Use shielded twisted pair cable. Ground the shield at one end only.
A palm oil mill in Malaysia had a DN50 mag meter that jumped every time a nearby mixer started. The problem was not the transmitter. The signal cable was tied to the motor cable. We asked the plant to separate the cables by at least 300 mm and ground the shield at the transmitter end. The reading became stable within a few minutes.
Quick installation checklist
- Pipe size: DN15 to DN600 standard, larger sizes on request.
- Flow range: 0.1 to 12 m/s for best accuracy.
- Liner: PTFE, PFA, hard rubber, or polyurethane based on fluid.
- Electrodes: 316L stainless steel, Hastelloy C, titanium, or tantalum.
- Grounding: ground rings for plastic pipes and lined metal pipes.
- Signal cable: shielded twisted pair, at least 300 mm from power cables.
Most electromagnetic flow meters need a minimum liquid conductivity of 5 µS/cm. Demineralized water or condensate may need a different flow meter type. For hazardous area systems, specify an electromagnetic flow meter with ATEX Zone 1 approval and 4-20 mA HART output. Keep the analog signal cable separate from power wiring.
For a seawater flow meter for a desalination plant, specify a PTFE liner and titanium electrodes. For a chemical plant with hydrochloric acid, specify a PFA liner and tantalum electrodes. For clean water or wastewater, 316L electrodes with hard rubber are usually enough. Send us your pipe size and fluid details. We will provide a budget quote and recommended model.
FAQ: Electromagnetic flow meter installation mistakes
Does a mag meter need a full pipe?
Yes. The flow tube must stay full of liquid. Install the meter in a low point or an upward vertical run.
Can I install a mag meter in a vertical pipe?
Yes. Use upward flow. This keeps the pipe full and helps gases escape.
What grounding method should I use for plastic pipes?
Use ground rings or grounding electrodes on both sides of the flow tube. Bare metal pipes can often use a ground strap to the meter body.
What liner should I choose for seawater or brine?
Use PTFE or PFA liner. For electrodes, use titanium or Hastelloy C. Tell us the salinity and temperature in °C. We will help you specify.
Why does my electromagnetic flow meter jump when a pump starts?
This is usually signal cable interference from a VFD or motor cable. Separate the signal cable from power cables and ground the shield at one end only.
Need a fast quote? Send us your pressure (bar), temperature (°C), pipe size (DN), and flow range. Contact Silver Automation Instruments: Tel +86-25-68650347, WhatsApp +86-25-52155837, WeChat +86 15365082610, website flow-meter.com.au.
