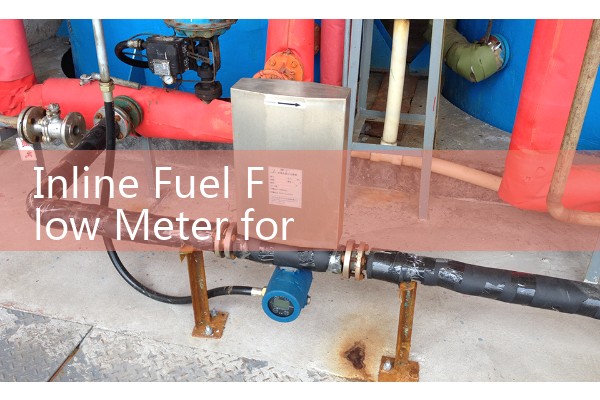

Inline Fuel Flow Meter for Boats: Real-Time Fuel Economy with Marine Navigation Systems
Quick Answer: An inline fuel flow meter for boats measures real-time diesel or gasoline consumption in liters per hour or kilograms per hour. Silver Automation Instruments supplies oval gear and Coriolis fuel flow meters with pulse, 4-20 mA, HART, or RS485 Modbus outputs for Garmin, Simrad, and Raymarine navigation systems. Send your engine kW, fuel type, and line size in DN for a same-day quote.
Why Boat Operators Install Inline Fuel Flow Meters
Fuel cost is usually the largest variable cost for workboats, fishing vessels, and crew transfer boats. A 300 kW marine diesel engine can burn 60 to 90 liters per hour at cruise. Without a flow meter, the crew estimates consumption from tank level or engine hour logs. In practice, this method misses injector wear, hull fouling, and fuel theft. We have seen a crew boat operator in Vietnam reduce fuel cost by 8 percent after two weeks of data because one engine was running 12 percent richer than the other.
Oval Gear vs Coriolis for Marine Fuel Lines
For standard marine diesel, an oval gear fuel flow meter is the most common choice. We recommend DN4 to DN50 316L body meters with FKM seals for diesel and biodiesel blends. These meters work from 1 cP to 1000 cP, so marine diesel at 2 to 6 cSt is not a problem. Accuracy is ±0.5 percent of reading with repeatability of ±0.03 percent. Temperature rating is -20 to 120°C. A PT100 probe is not built into most oval gear meters, so add a separate temperature transmitter if fuel temperature compensation is needed. Pulse output is easy to log. For gasoline, ethanol blends, or high value fuel, a Coriolis mass flow meter from DN15 to DN25 measures kg/h directly. It also gives density and temperature. This is useful when fuel quality varies between ports in Southeast Asia or the Middle East.
Marine Navigation System Integration
Garmin, Simrad, and Raymarine multifunction displays rarely read a raw pulse signal from a fuel meter directly. The practical setup is a pulse to NMEA 2000 converter or a flow meter with RS485 Modbus RTU into a marine gateway. For example, a DN10 oval gear fuel meter with 1000 pulses per liter can feed an Actisense or Yacht Devices converter. The chartplotter then shows liters per hour, total fuel used, and fuel economy in liters per nautical mile. If your boat uses a PLC or alarm system, use a 4-20 mA HART output. It carries flow rate and totalizer data over two wires and fits existing engine room cabling.
Two Meters for Common Rail Diesel Return Lines
Most modern marine diesel engines with common rail injection return a large volume of hot fuel to the tank. If you install one flow meter on the supply line only, the reading will be too high. You need two flow meters, one on supply and one on return, or a differential flow meter. Subtract the return flow from supply flow to get net fuel burn. A dive boat operator in Queensland used two DN10 oval gear meters on twin 350 kW engines. The data
Installation Tips Most Engineers Skip
Oval gear meters do not need long straight pipe runs. That is a benefit in tight engine rooms. But they do need a 100 micron Y strainer before the inlet. Small particles from fuel tanks can jam the gears. Use a bypass line if the vessel cannot stop for cleaning. For Coriolis meters, allow 10D upstream and 5D downstream straight pipe. Do not mount a flow meter before a high pressure pump without a pulsation dampener. Pressure spikes from diaphragm pumps can damage the sensor. If the fuel line is DN25 or smaller, use a meter with G1 or G1/2 threads and verify the pressure rating. Most standard meters are rated to 100 bar, which covers diesel supply and return lines.
Price Factors and Lead Time
A standard DN10 oval gear fuel flow meter with pulse output costs between 180 and 350 USD depending on body material and display type. A DN15 Coriolis mass fuel meter with Modbus RS485, 4-20 mA, and HART usually starts around 2600 USD. Lead time for standard marine fuel meters is 5 to 12 working days from our Nanjing warehouse. ATEX Zone 1 or marine class certification adds 3 to 5 weeks. If you need a unit for a hazardous area engine room, send the vessel class and zone classification with your request.
FAQ: Inline Fuel Flow Meter for Boats
Q1: Can one inline flow meter measure net fuel consumption on a diesel boat engine?
No. Many common rail diesel engines return fuel to the tank. Use two meters, or a differential flow meter. Subtract return flow from supply flow to calculate net burn.
Q2: Which output works with Garmin, Simrad, or Raymarine chartplotters?
Pulse output through a pulse to NMEA 2000 converter is the most common. RS485 Modbus RTU into a marine gateway also works. Check your display manual before you buy a meter.
Q3: What fuel viscosity can an oval gear inline fuel flow meter handle?
Standard oval gear meters handle 1 cP to 1000 cP. Marine diesel at 40°C is typically 2 to 6 cSt. This is within the normal range. Heavy fuel oil may need a heated meter.
Q4: Do I need ATEX certification for a diesel fuel flow meter in an engine room?
It depends on flag state and vessel class. Some engine rooms are Zone 2. Confirm with your marine surveyor. We supply ATEX Zone 1 and Zone 2 versions for fuel and fuel vapor areas.
Q5: What details do you need for a quote?
Send engine power in kW, fuel type, supply and return line size in DN or inches, output needed by the navigation system, and required accuracy. We reply within 24 hours.
Contact Silver Automation Instruments for an inline fuel flow meter for boats. Tel: +86-25-68650347. Whatsapp: +86-25-52155837. WeChat: +86 15365082610. Send your fuel type, engine kW, line size in DN, and navigation system output to flow-meter.com.au for a quote.
