Electromagnetic Flow Meter Installation Guide for Straight Pipe Requirements
Quick Answer: For most electromagnetic flow meters, keep at least 10D straight pipe upstream and 5D downstream. D means the pipe inner diameter. If a pump or control valve sits upstream, increase the straight run to 20D or more. Send us your pipe size in DN, flow range, and pressure for a direct installation check.
Straight pipe installation is often overlooked. But it decides whether your electromagnetic flow meter reads true or drifts. This guide covers the rules we use at Silver Automation Instruments for water, wastewater, chemical, and food lines. We ship to Southeast Asia, Oceania, Latin America, Africa, and the Middle East. Most site errors we see come from short straight runs, air pockets, or poor grounding. Not from the meter itself.
Why Straight Pipe Length Matters for Magnetic Flow Meters
An electromagnetic flow meter measures the voltage generated by a conductive liquid moving through a magnetic field. The electrodes pick up this signal at the pipe wall. The meter assumes a stable and symmetric flow profile. A 90 degree elbow or a pump creates swirl and uneven velocity across the pipe. That distorts the signal. The result is a reading that is too high or too low. In practice, a wastewater plant in Vietnam had a DN80 meter installed after a double elbow. The reading shifted by 5 percent until the pipe was rerouted. Straight pipe lets the liquid settle. That is the whole point.
Standard Straight Pipe Requirements
For clean water and most chemicals, we recommend 10D upstream and 5D downstream. D is the pipe inner diameter. Some standards allow 5D upstream and 2D downstream for small lines such as DN15 or DN25. That only works with a minor upstream disturbance. For billing or custody transfer, use 15D upstream and 5D downstream. For a pump discharge, use 20D upstream. For a partially open gate valve or a butterfly valve, use 20D upstream. Downstream 5D is enough in most cases. The extra straight pipe costs little compared to a wrong invoice or a batch error.
Straight Pipe for Different Upstream Fittings
Different fittings disturb the flow in different ways. After a single 90 degree elbow or tee, keep 10D straight pipe before the meter. After a control valve, keep 15D. After a piston pump or a progressive cavity pump, keep 20D. After two elbows in different planes, keep 25D. After a partially open butterfly valve, the flow becomes a jet. Use 20D minimum. These values apply to full bore electromagnetic flow meters. For reduced bore designs, follow the same rule. If your pipe rack has less space, we can supply a flow conditioner. But a flow conditioner is not a free pass. We still want 5D between the conditioner and the meter.
Vertical and Horizontal Installation Rules

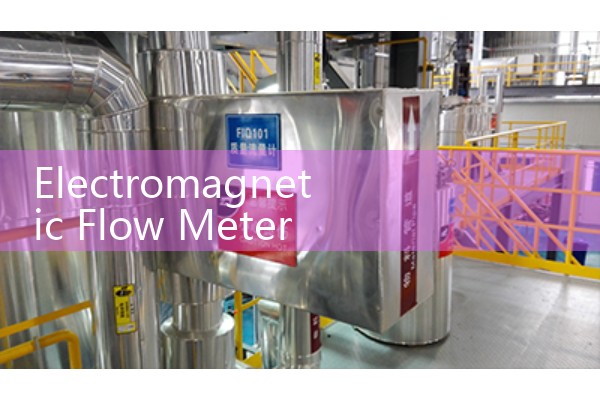

Install the meter in a vertical pipe with upward flow if possible. This keeps the pipe full and air away from the electrodes. For horizontal lines, place the electrodes in the horizontal plane. Do not install the meter at the highest point of a pipe rack. Gas bubbles collect there. Do not inst
_600x400.jpg)
Grounding and Other Site Checks
Straight pipe alone is not enough. You must ground the meter properly. Electromagnetic flow meters need a stable reference between the electrodes and the process liquid. For metal pipes, ground straps on the flanges usually work. For plastic or lined pipes, use grounding rings or grounding electrodes. A poor ground causes unstable readings that look like flow disturbances. We saw this on a chemical dosing line in Malaysia. The meter had 10D straight run but the signal fluctuated. The fix was adding grounding rings. After that, the reading stabilised. Check grounding before you add more straight pipe. Most engineers skip this part on first installation.
What Data We Need for a Site Check
For a new installation, send us your pipe size in DN or inches, process liquid, conductivity, temperature, pressure, flow range, and upstream fittings. Also tell us the available straight pipe length before and after the meter. Our engineers will confirm if your layout meets the requirement. If it does not, we will recommend a flow conditioner or a different meter size. You can reach Silver Automation Instruments by phone, WhatsApp, or WeChat. Phone: +86-25-68650347. WhatsApp: +86-25-52155837. WeChat: +86 15365082610. We respond to inquiries from industrial end users and distributors. Send your pressure in bar, temperature in Celsius, pipe size in DN, and flow range. We will reply with a quotation and an installation check.
Frequently Asked Questions
Q: What is the minimum straight pipe length for an electromagnetic flow meter?
A: Keep 10D upstream and 5D downstream for most water and wastewater lines. For DN15 to DN25 lines with no severe disturbance, 5D upstream and 2D downstream can work.
Q: Can I install a magmeter right after a pump?
A: No. Use at least 20D of straight pipe after a pump discharge. A flow conditioner can reduce this, but 15D is still safer.
Q: What happens if the straight pipe requirement is not met?
A: The meter may read high or low by 1 to 5 percent. In some cases, the reading becomes unstable. For billing applications, this error is not acceptable. Reroute the pipe or install a flow conditioner.
Q: Do vertical installations need the same straight pipe?
A: Yes. The same upstream and downstream lengths apply. Vertical upward flow is the best practice because it keeps the pipe full. In a downcomer, you may need a back pressure valve to keep the line full.
Q: Can Silver Instruments check my piping layout before I buy?
A: Yes. Send us your pipe size, upstream fittings, and available straight pipe length. Use phone, WhatsApp, or WeChat. We will confirm if the layout meets installation requirements. This service is free for pre-sales inquiries.
