Endress Hauser Magnetic Flow Meter Manual PDF Download: Grounding and Terminal Connections
Quick Answer: The Endress Hauser magnetic flow meter manual covers grounding and terminal connections in detail. You need a clean ground path, correct terminal wiring, and the right grounding method for your pipe material. Silver Instruments follows the same electrical rules on its electromagnetic flow meters and can help you match connections for DN15 to DN2000 lines.
Why Grounding Matters on a Magnetic Flow Meter
Magnetic flow meters measure voltage in the microvolt range. The signal is small. Any stray current or ground loop can corrupt the reading. That is why the Endress Hauser manual PDF puts grounding and terminal connections near the front of the installation section.
In practice, most engineers skip the grounding check until a meter reads unstable values. We have seen this on customer sites many times. A water plant in Vietnam replaced a working transmitter because the flow reading jumped. The root cause was a missing ground ring on a plastic pipe.
Grounding Methods in the Endress Hauser Manual
The manual describes three main grounding paths. The first is a ground ring on each side of the sensor. This works for lined steel pipes or plastic pipes. The second is a grounding electrode built into the sensor. This is common when the process liquid has conductivity above 5 µS/cm. The third is a direct earth wire from the sensor body to the plant ground bar.
Silver Instruments supplies grounding rings in stainless steel 316L, Hastelloy C, titanium, and tantalum. If your line is DN50 with PTFE liner and you pump aggressive chemicals, order the grounding rings with the meter. Do not assume the pipe bolts will provide a stable ground.
Terminal Connections: Power, Signal, and Output Wiring
Terminal labels on Endress Hauser transmitters follow a standard pattern. Power terminals sit on the left. Signal and output terminals sit on the right. The manual shows separate cable glands for power and signal cables. Keep those cables apart by at least 20 cm inside the panel.
For a typical 4-20 mA HART output, wire the positive to terminal I+ and the negative to I-. If you use a pulse output for batching, connect to the P+ and P- terminals. For Modbus RS485, use the A and B terminals. Always shield the cable at one end only. Ground the shield at the PLC cabinet side. This avoids ground loops.
Common Wiring Mistakes We See on Customer Sites
One common mistake is using one cable for power and signal. That saves time but invites noise. Another mistake is connecting the shield at both ends. That creates a different ground potential. A paint manufacturer in Southeast Asia had a flow totalizer drifting every afternoon. The plant heat changed the ground resistance. After we converted the wiring to single end shield, the totalizer settled.
Also check terminal torque. Loose terminal screws cause intermittent loss of signal. The Endress Hauser manual list
Silver Instruments Magmeter Grounding and Wiring Options

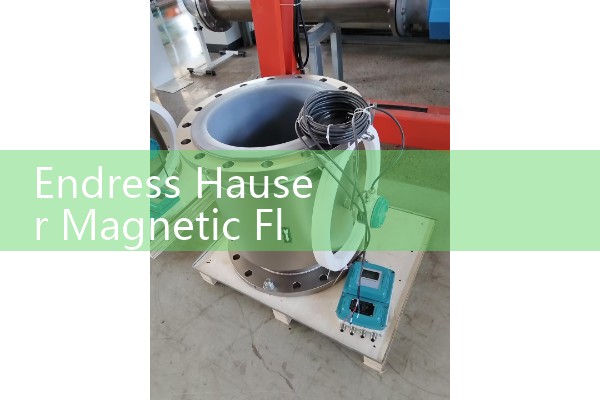

Silver Automation Instruments offers electromagnetic flow meters with the same connection logic. Our meters cover DN15 to DN2000 sizes. You can choose rubber, PTFE, or PFA liners. Electrode options include 316L, Hastelloy C, titanium, and tantalum. Outputs include 4-20 mA HART, pulse, frequency, and RS485 Modbus. We also supply compact and remote transmitter versions.
For hazardous areas, ask about ATEX Zone 1 certified models. For custody transfer in water networks, request a calibration certificate with each meter. We ship from our Nanjing factory to Southeast Asia, Oceania, Latin America, Africa, and the Middle East.
Quick Selection: Pipe Size, Liner, Electrode, and Output
Send us your pipe size, pressure, temperature, and flow range. We will select the right sensor and grounding method. For example, a DN100 raw water line in Saudi Arabia with 25 °C and 6 bar pressure works well with a rubber liner, 316L electrodes, and built in grounding electrodes. A DN25 chemical dosing line in Mexico with 30 % hydrochloric acid needs PTFE liner, tantalum electrodes, and ground rings. Both need 4-20 mA HART output unless your PLC only accepts pulse.
FAQ
Where can I download the Endress Hauser magnetic flow meter manual PDF?
Visit the Endress Hauser official product page for your model. You can enter the order code or search by device name. If you need a replacement meter, Silver Instruments can send a full wiring diagram with every quotation.
Do I need ground rings on a metal pipe?
Not always. If the pipe is metal and unlined, the process connection often provides a ground path. If the pipe has an internal liner or is plastic, use ground rings or a grounding electrode.
What is the minimum conductivity for a magnetic flow meter?
Most industrial magmeters need at least 5 µS/cm. Some high end models work down to 1 µS/cm. Demineralized water and pure hydrocarbons usually need a different meter type.
Can I use the same power supply for the magmeter and the PLC input card?
You can, but separate power supplies reduce noise. If you must share one supply, keep the magmeter power cable short and shielded.
How do I order a Silver Instruments magnetic flow meter for a specific application?
Send us your fluid type, conductivity, pipe size, pressure, temperature, and flow range. Use Tel: +86-25-68650347, Whatsapp: +86-25-52155837, or WeChat: +86 15365082610. We reply within 24 hours on business days.
For direct pricing on electromagnetic flow meters, contact Silver Automation Instruments. Send your pipe size in DN, process pressure in bar, temperature in °C, and expected flow range in m3/h. We will confirm the liner, electrode, grounding method, and terminal drawing for your project.
